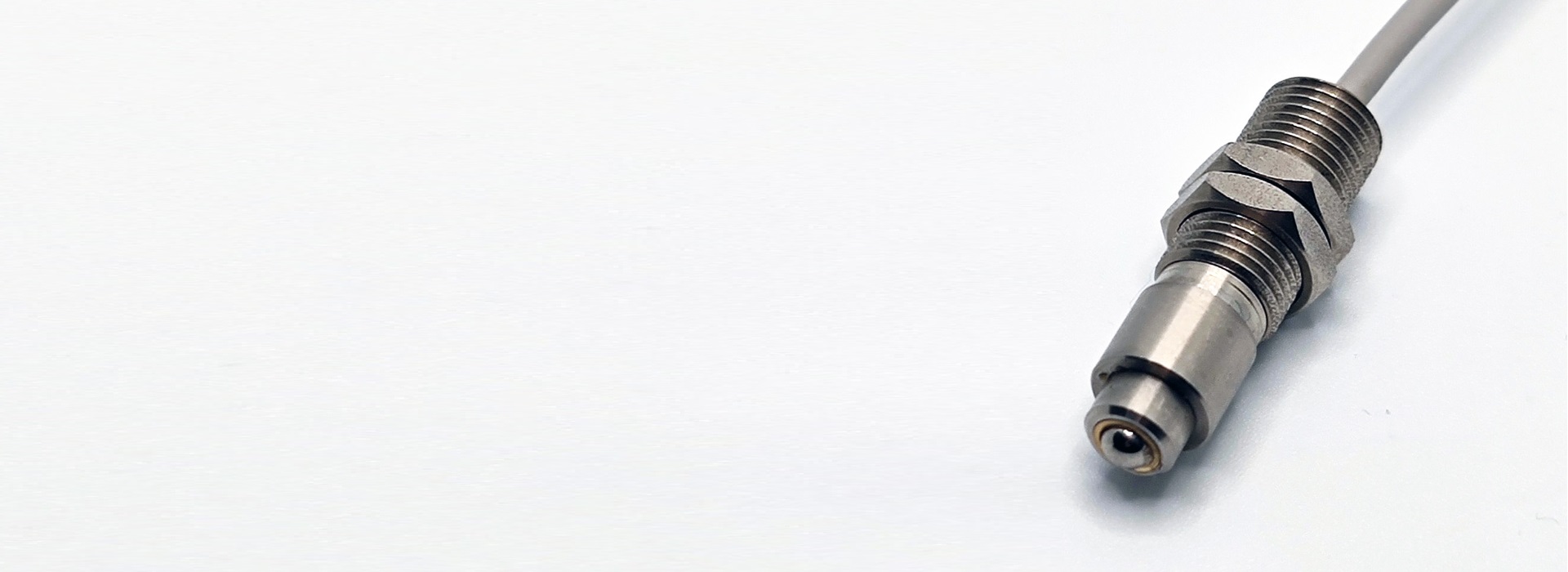

BCW High Precision Contact Sensor

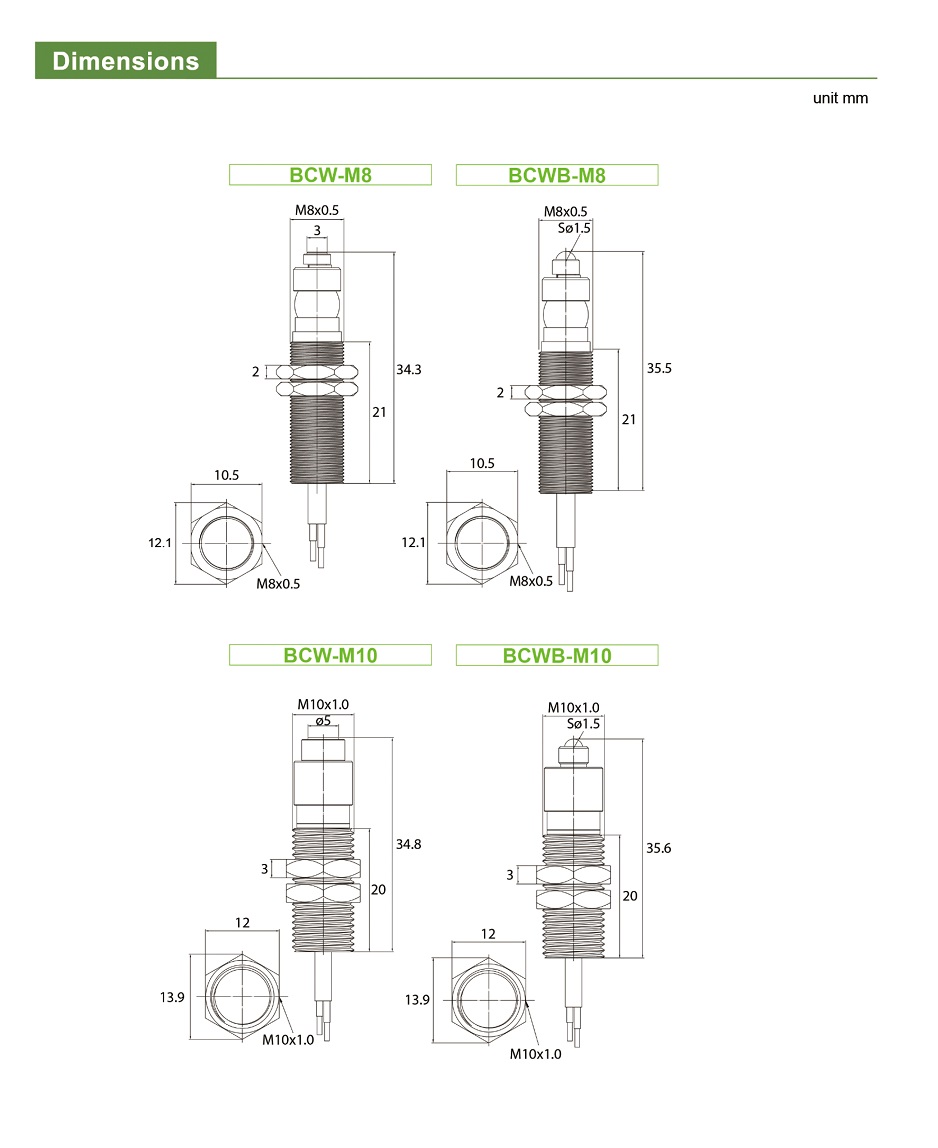

Model: Ball head BCWB-M M8*0.5, M10*0.5

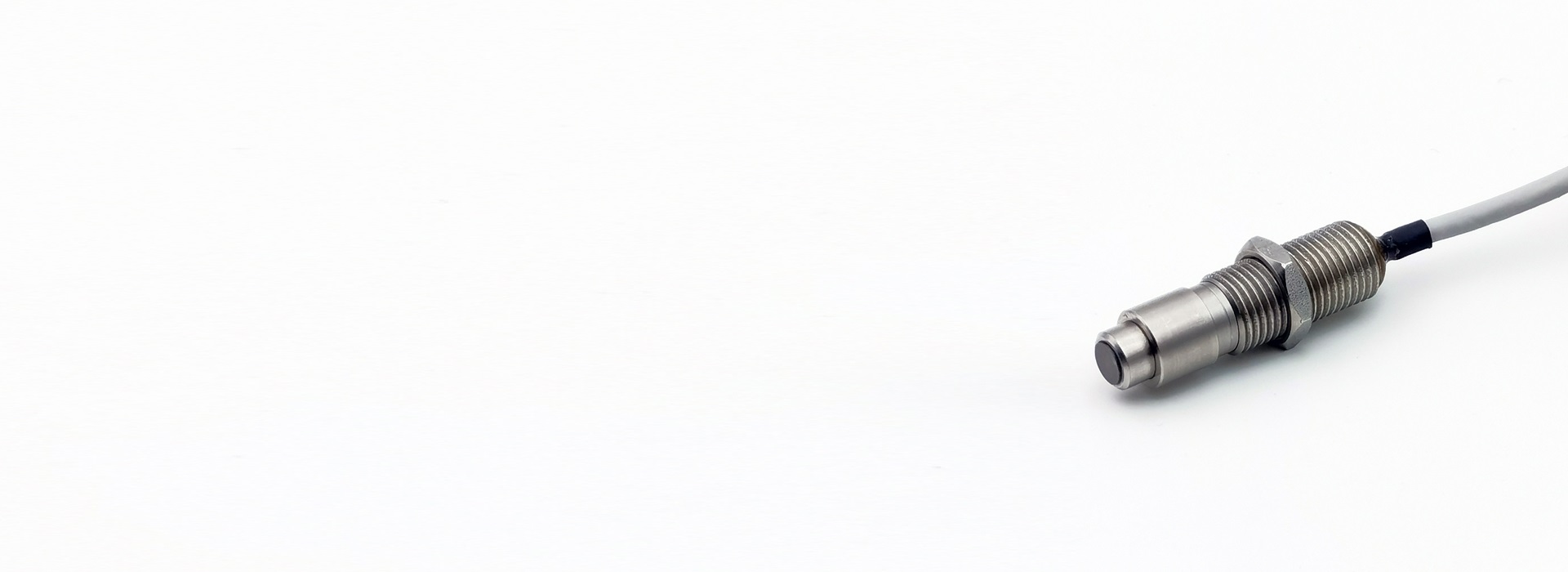

Flat BCW-M M8*0.5, M10*0.5
Place of origin: Taiwan

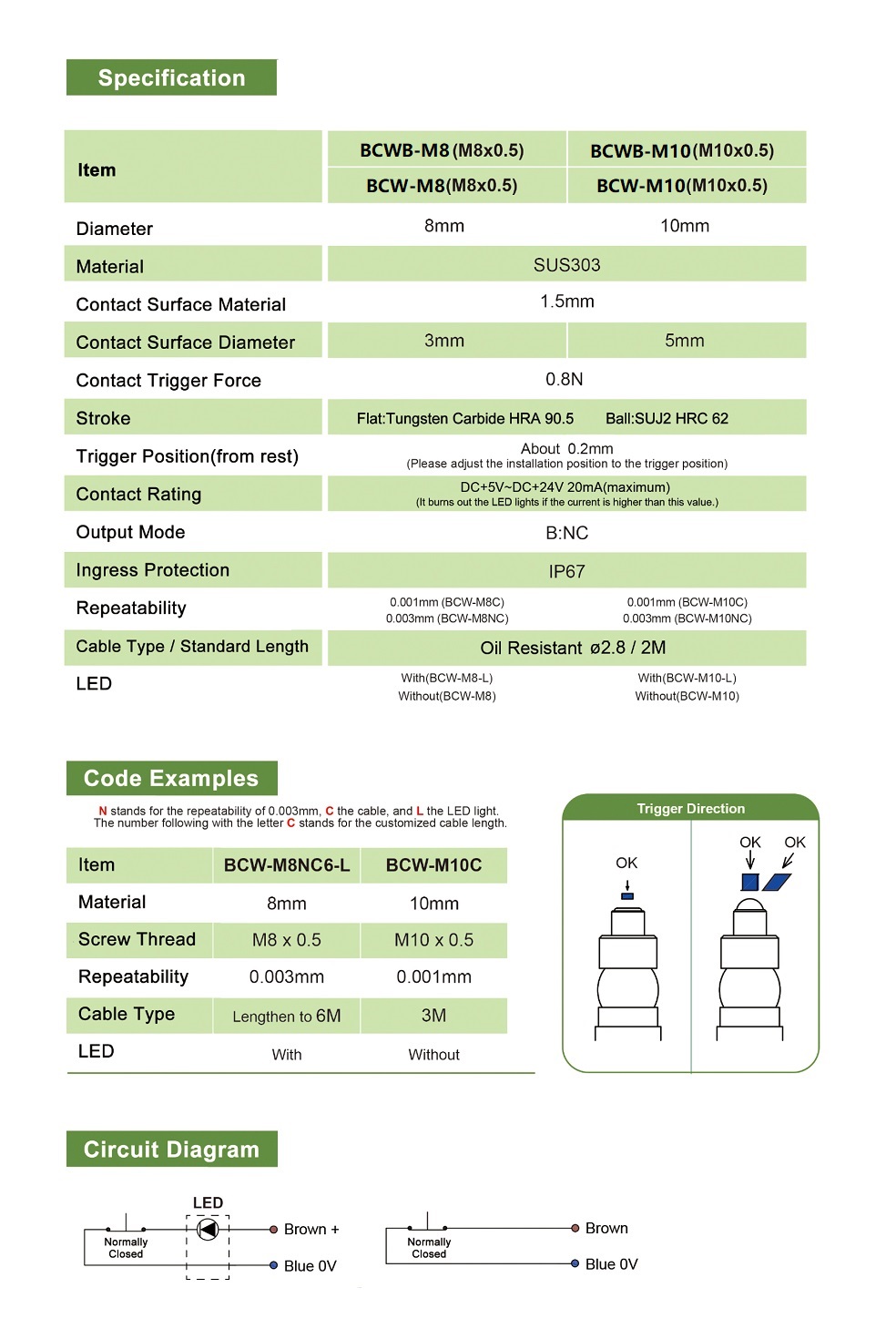

Repeat accuracy: 1 um
Contact accuracy life: 3 million times Contact force 1N-0.5N*
Contact structure: Contact type
Protection structure: IP67* waterproof, oil-proof
Pre-travel: about 0.2mm (A:N0) / None (B:NC)*
Contact rating: DC5V-DC24V Steady-state current 10mmA or less (inrush current 20mA or less)
Related products
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service
Provide 360° complete after-sales technical solution service
Reasons to choose it

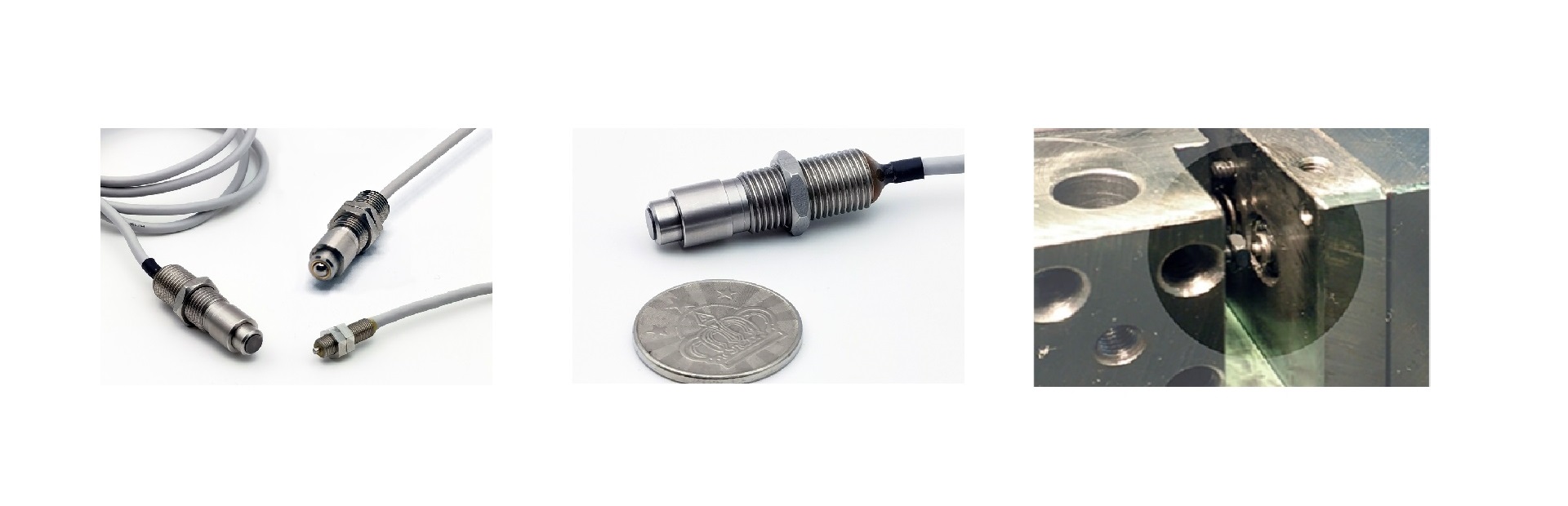

| According to the use conditions, the stop bolts are available in straight and hexagonal head bolts, sizes from M6 to M10, waterproof and other types. | The built-in sensor is protected by a stopper bolt, so it is durable even against severe collisions. With an IP67 protection rating, it can also be used in environments where oil and water are used. | It can be used as a bumper to prevent damage, a stopper for fixtures in devices, and a positioning block. |
Product Features:
BCW contact sensor has a repeatability of 0.5 um, can be used to locate the origin of the tool tip of a machine tool, locate the origin of a semiconductor inspection table, measure the workpiece size of a surface grinder, correct the heat displacement of a desktop automatic machine, detect the tool wear of a small engraving machine, detect the deviation of a printing press roller, and make corrections with an accuracy of 0.5 microns.
Application Equipment:
Precision measurement and inspection of machine tool equipment, semiconductor inspection equipment, automated measuring equipment, etc.
BCW High Precision Contact Sensor:
The compact design of the contact sensor combined with the stop bolt helps to reduce the number of parts and achieve miniaturization of the equipment. It can be installed front or back even in a small space that is difficult to install.
