BCS Ultra-small Micro-motion Contact Sensor

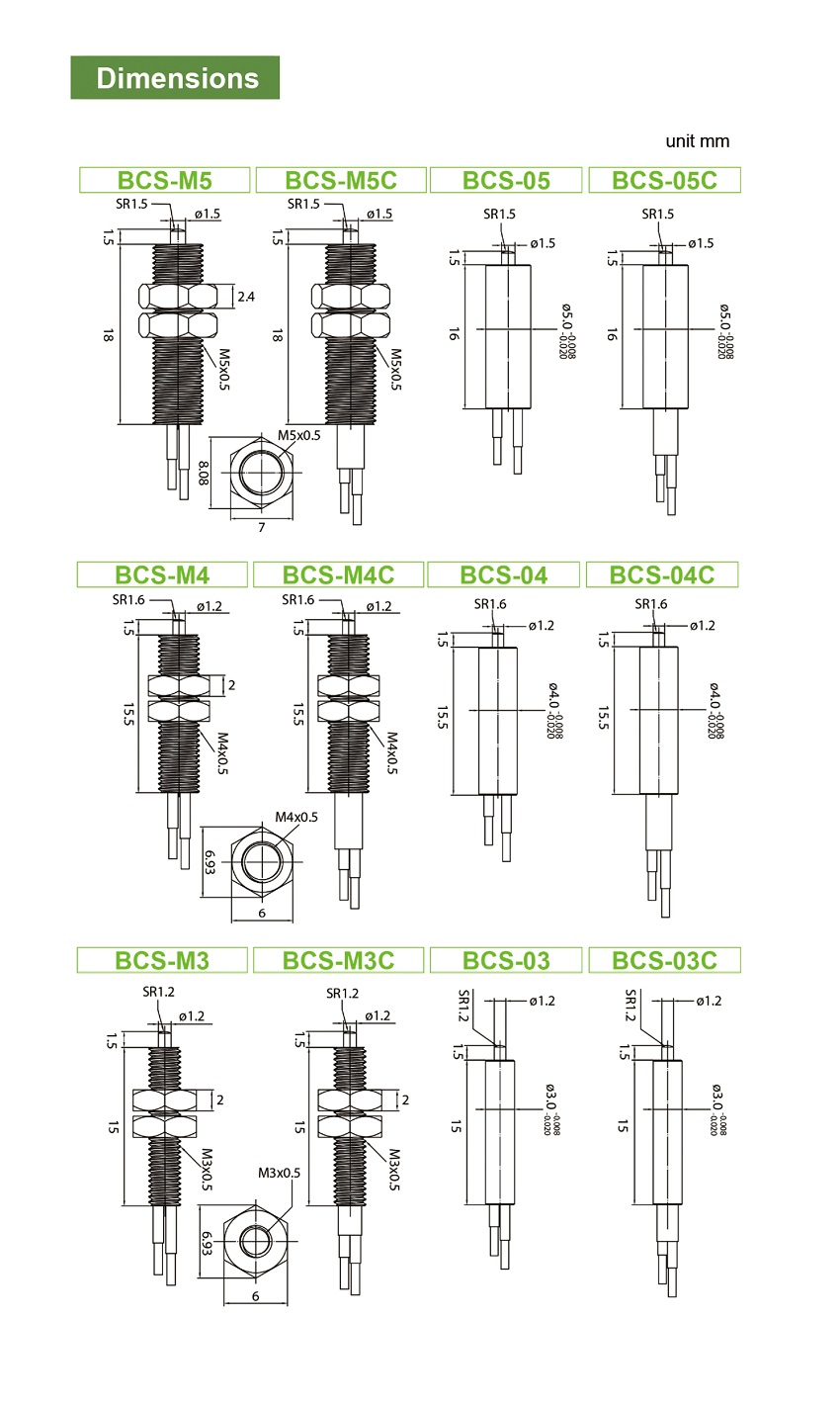

Model: Straight shank BCS D3, D4, D5
Fine thread BCS-M03*0.5,M4*0.5,M5*0.5
Place of production: Taiwan

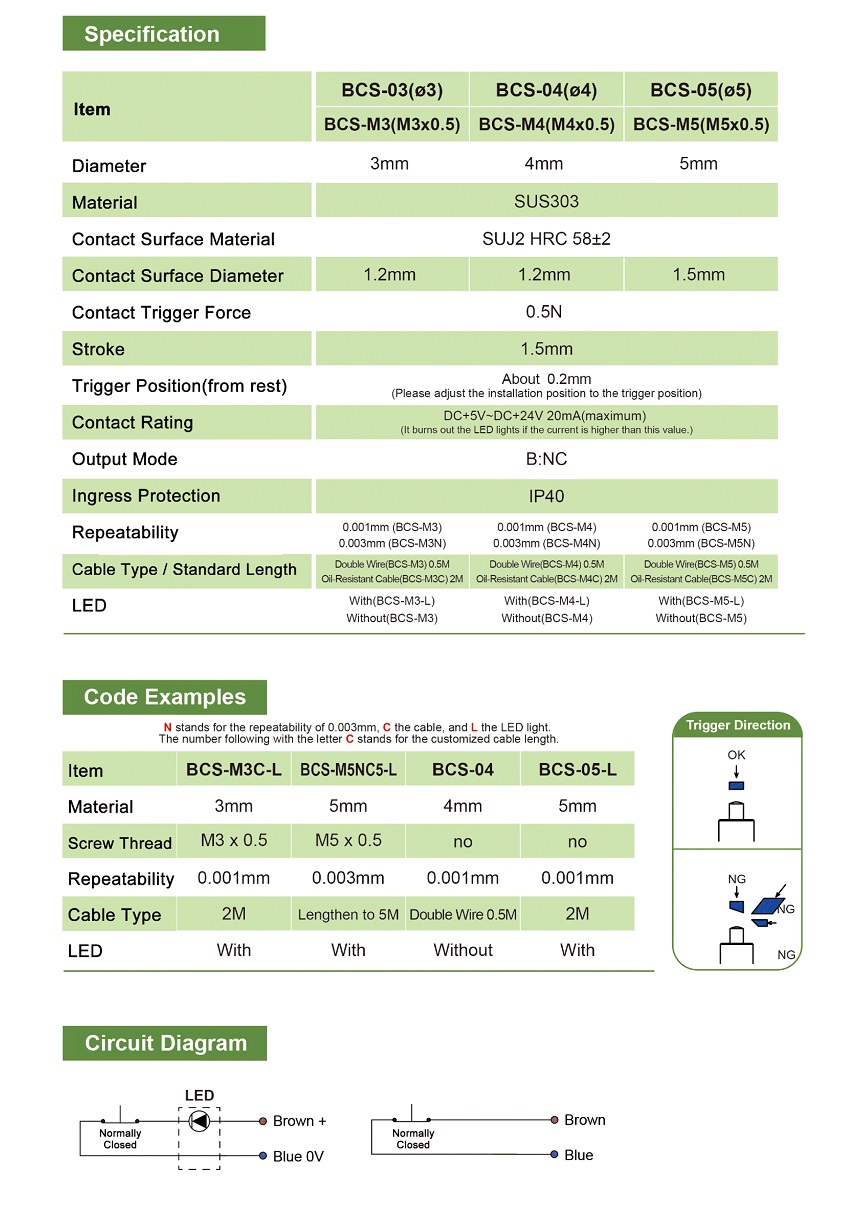

Repeat accuracy: 1 um
Contact accuracy life: 3 million times Contact force 1N-0.5N*
Contact structure: Contact type
Pre-stroke: Approx. 0.2mm (A:N0) / None (B:NC)*
Contact rating: DC5V-DC24V Steady-state current 10mmA or less (inrush current 20mA or less)
Related products
Customer Service
Each customer is equipped with a professional technical engineer to provide one-to-one service
Provide 360° complete after-sales technical solution service
Product Features:
BCS contact sensor has a repeatability of 0.5 um, can be used to locate the origin of the tool tip of a machine tool, locate the origin of a semiconductor inspection table, measure the workpiece size of a surface grinder, and correct the thermal displacement of a desktop automatic machine.
It can be used to detect tool wear of a small engraving machine, detect the deviation of a printing press roller, and make corrections with an accuracy of 0.5 microns.
Applied equipment:
Precision measurement and detection of machine tool equipment, semiconductor inspection equipment, automated measuring equipment, etc.
Keywords: contact sensor, contact sensor, precision contact sensor, bolt-type contact sensor, dental equipment contact sensor, dispensing machine contact sensor, automated equipment contact sensor, glass cutting machine tool setting instrument.
