Main uses:

Tool measurement and tool damage detection on 2-axis and 3-axis CNC lathes

Main functions:

Automatic tool setting value, online detection of blade wear, tool length damage and tool breakage alarm

Product features:

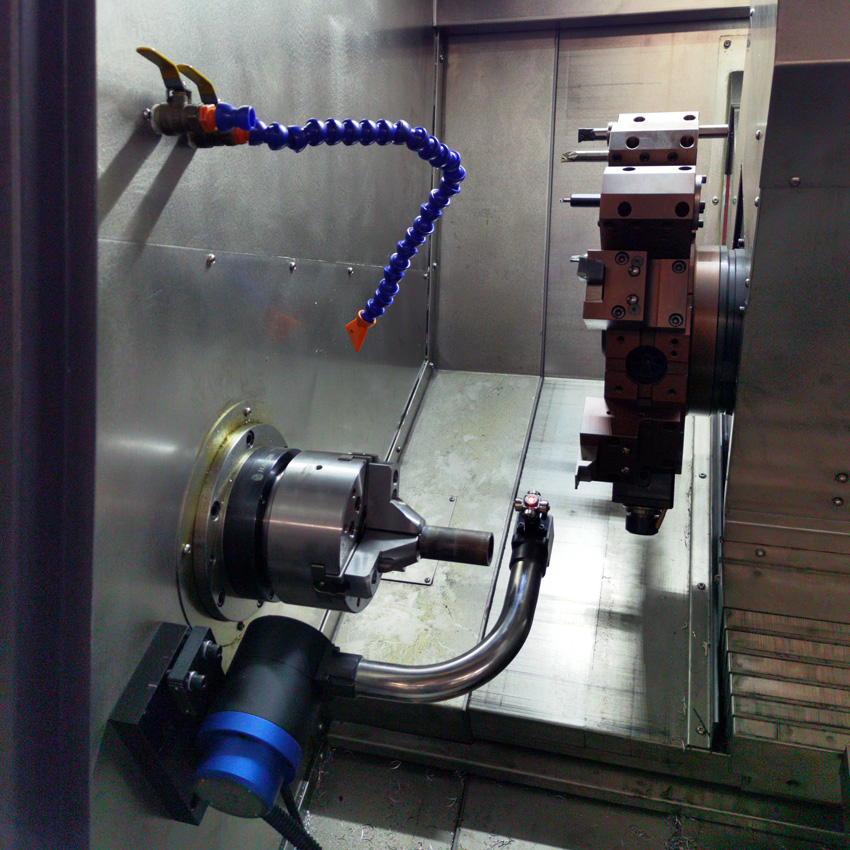

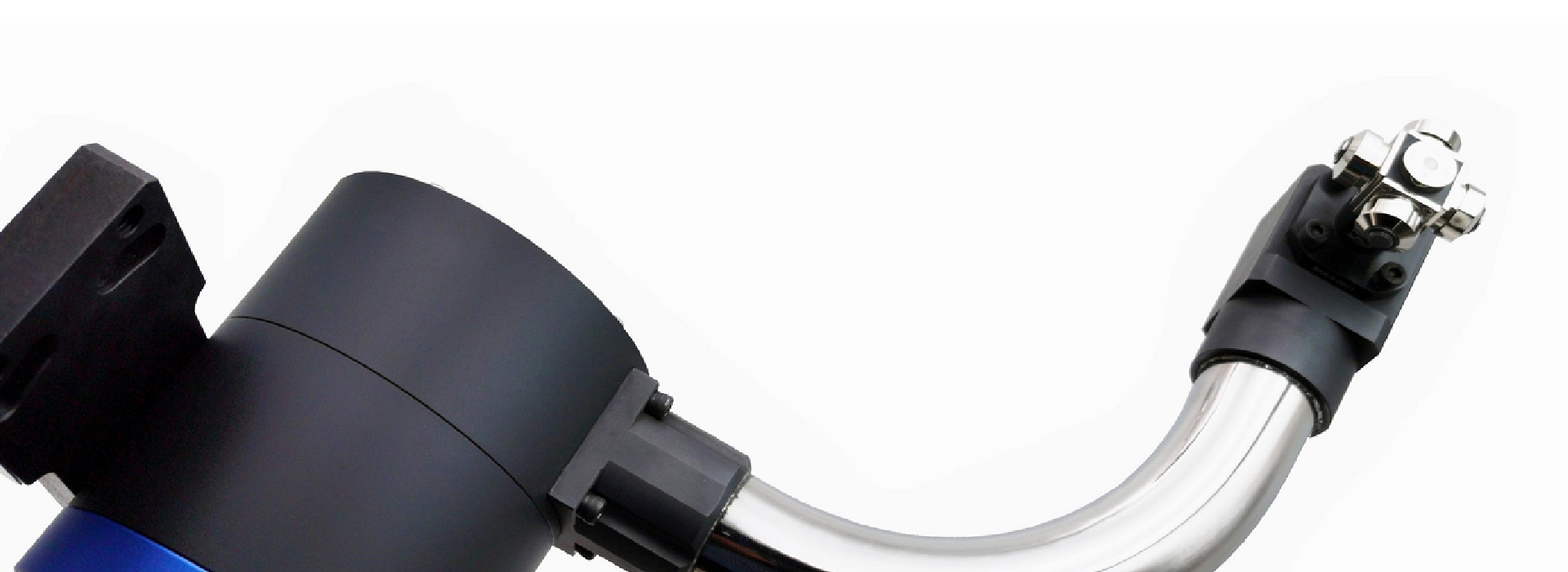

It consists of a fixed base and a swing tool setting arm. During measurement, the tool arm swings to the measurement position, and the tool arm returns to the original position after the measurement is completed. The probe is stored in a metal protective box and can be directly controlled by the CNC system. It is suitable for mass production and fully automated production lines.
Compared with traditional tool length detection methods (manual testing, trial cutting methods), it can save a lot of detection time
Correct cycle compensation drift, set tool deviation with high precision and high reliability, the machine tool CNC system calls simple and reliable tool setting software, the machine tool automatically records, and eliminates human reading and writing errors.

Application equipment:

CNC lathe, turning and milling machine
