3D edge finder for precision workpiece measurement
Model: MMP3

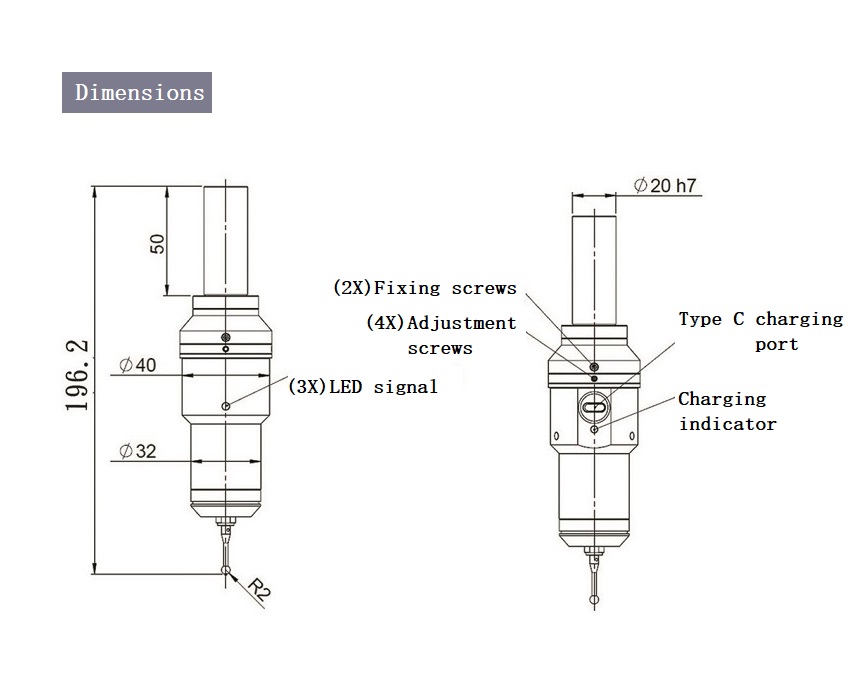

Handle diameter: straight handle 20mm
Probe material: stainless steel ruby φ3
Charging specification: Type-c 5V max 1A
Battery capacity: 250mAh
Charging light: charging light/full light off
Overrange: XY 12mm X 5mm
Measured pressure: XY 0.4N, Z 1.5N
Precision: Repeatable positioning accuracy 1um
Probe head and body coaxiality: error range ≦ ±2.5um qualified
Related products

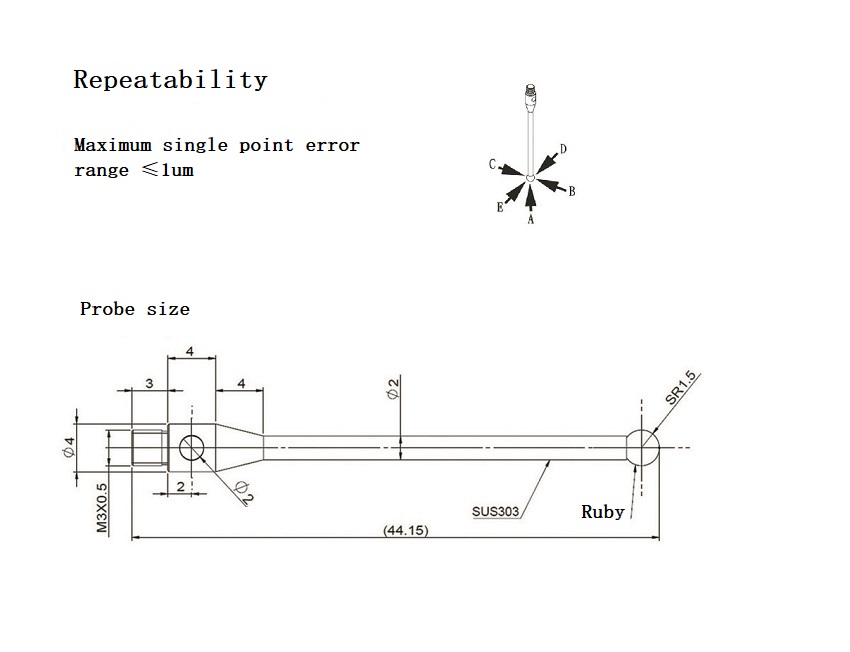

Repeatability: Maximum single point error range 1um
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service
Provide 360° complete after-sales technical solution service
Product features:
Non-magnetic properties, can be measured on EDM machines, repeatability 1u/can perform 3D measurements on the machine
Linear measurement:
X, Y axis can be dragged and measured repeatedly
Plane measurement:
Z axis can be dragged and measured repeatedly
Application equipment:
Corresponding to all workpieces and machine tools
