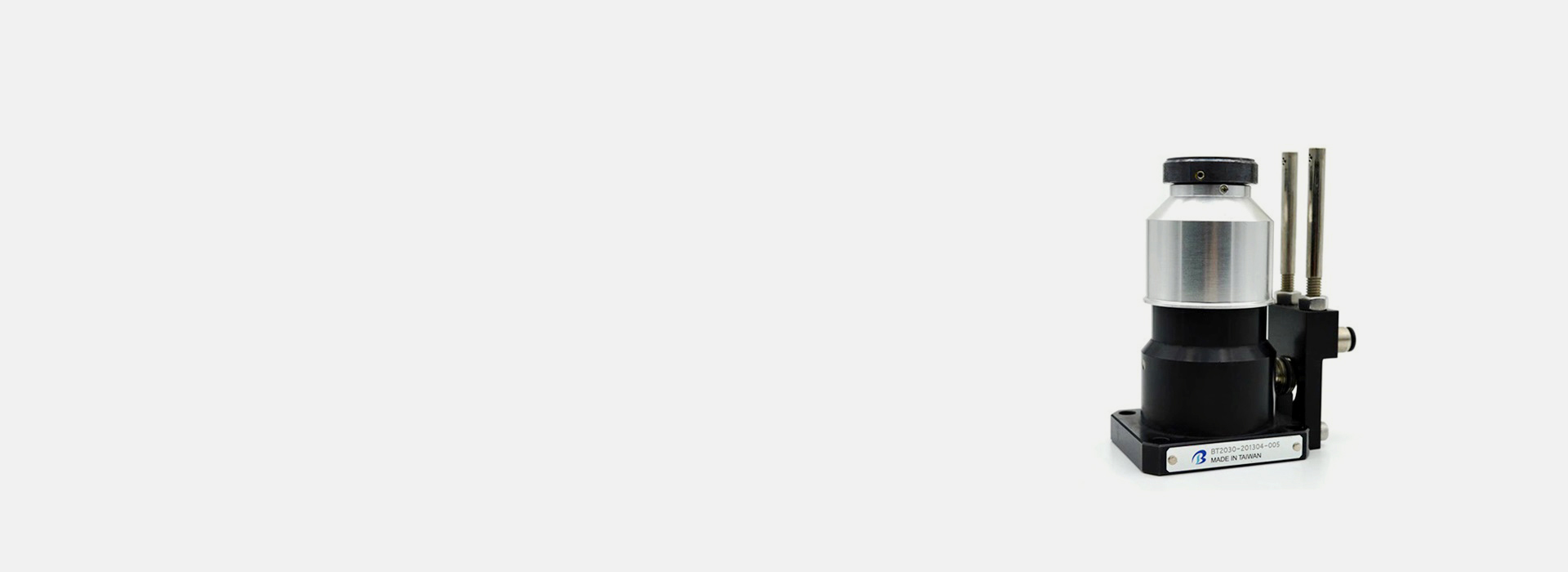

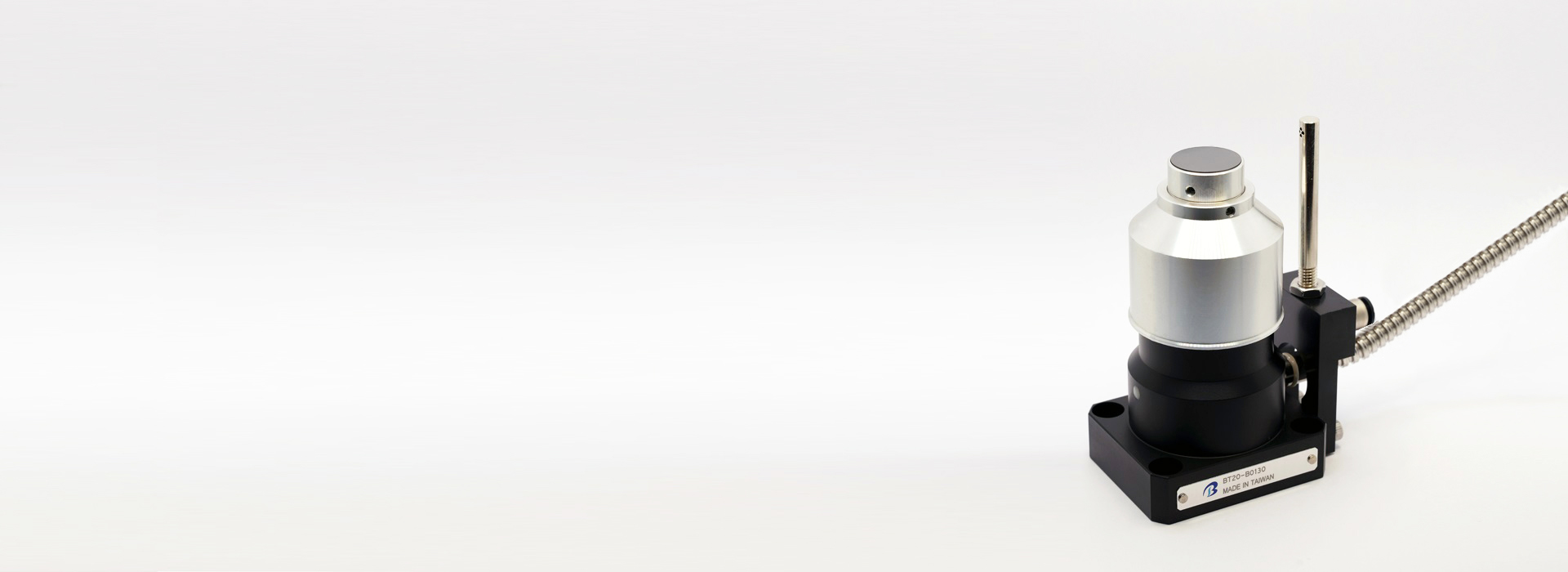

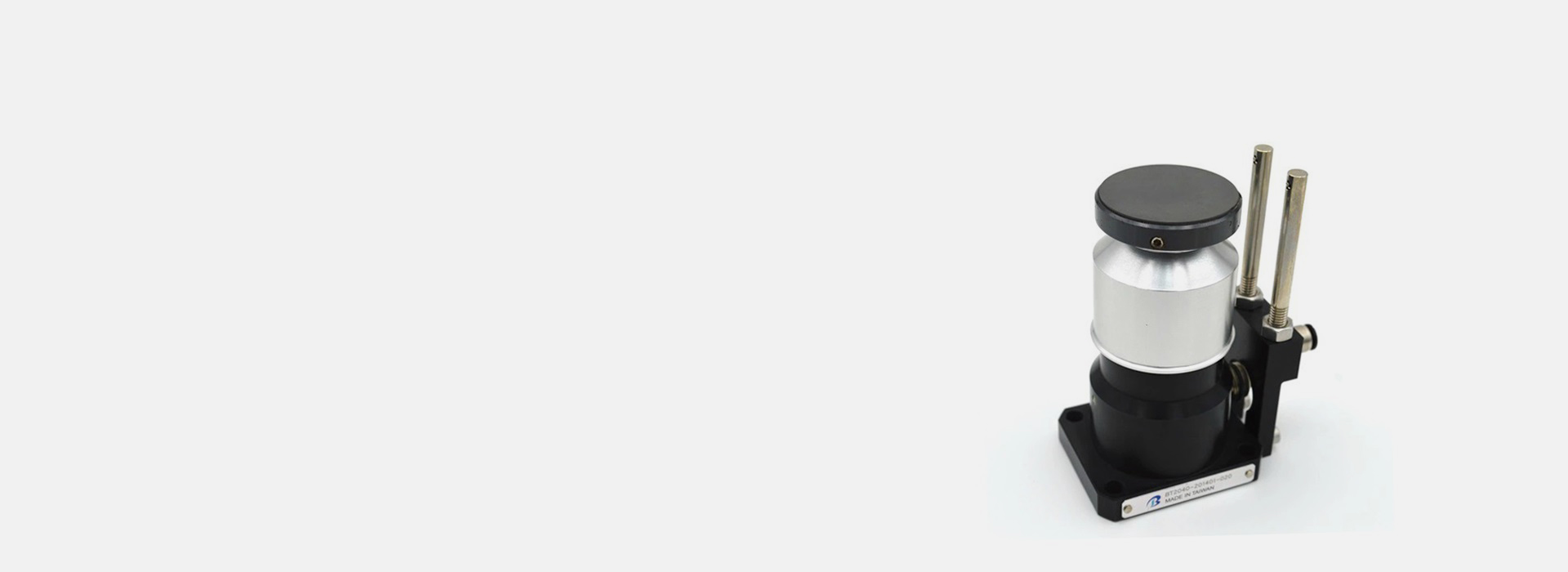

Tool setting instrument for machining center
Model: BT20 BT2030 BT2040
Origin: Taiwan
Repeat positioning accuracy: 1μm2σ (speed 50-200mm/min)
Contact life: 5 million times (steel ball core)
Contact force: preset 2.0N-2.5N

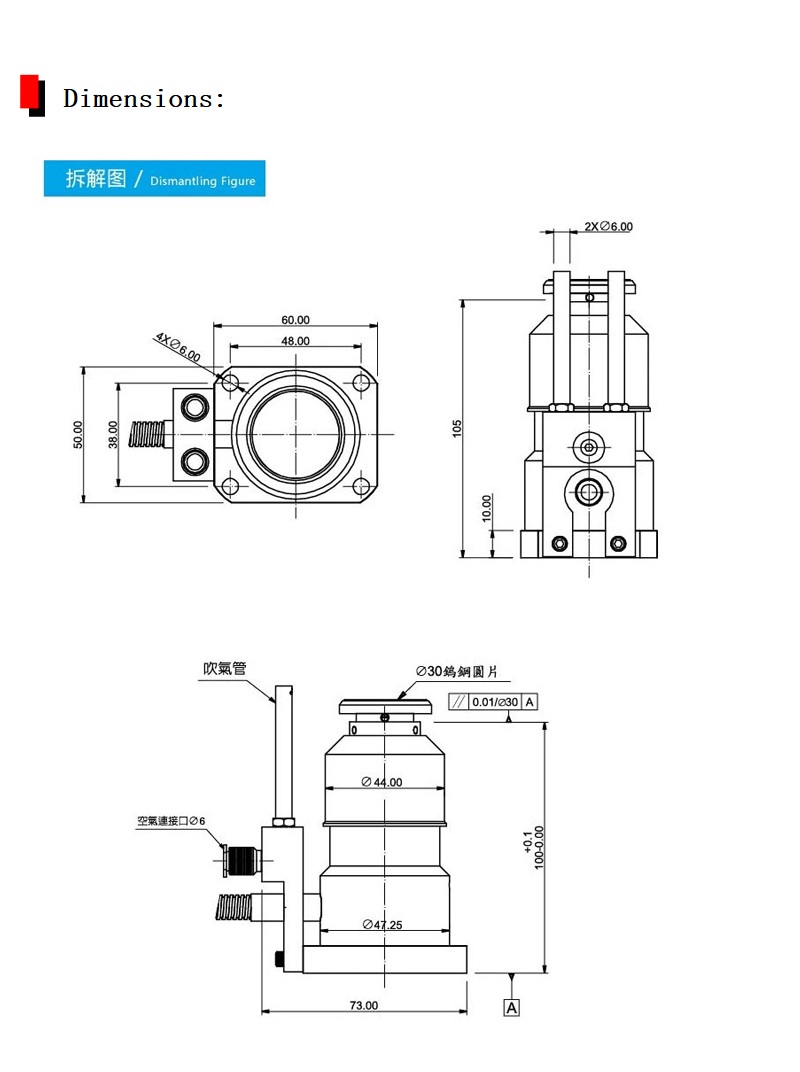

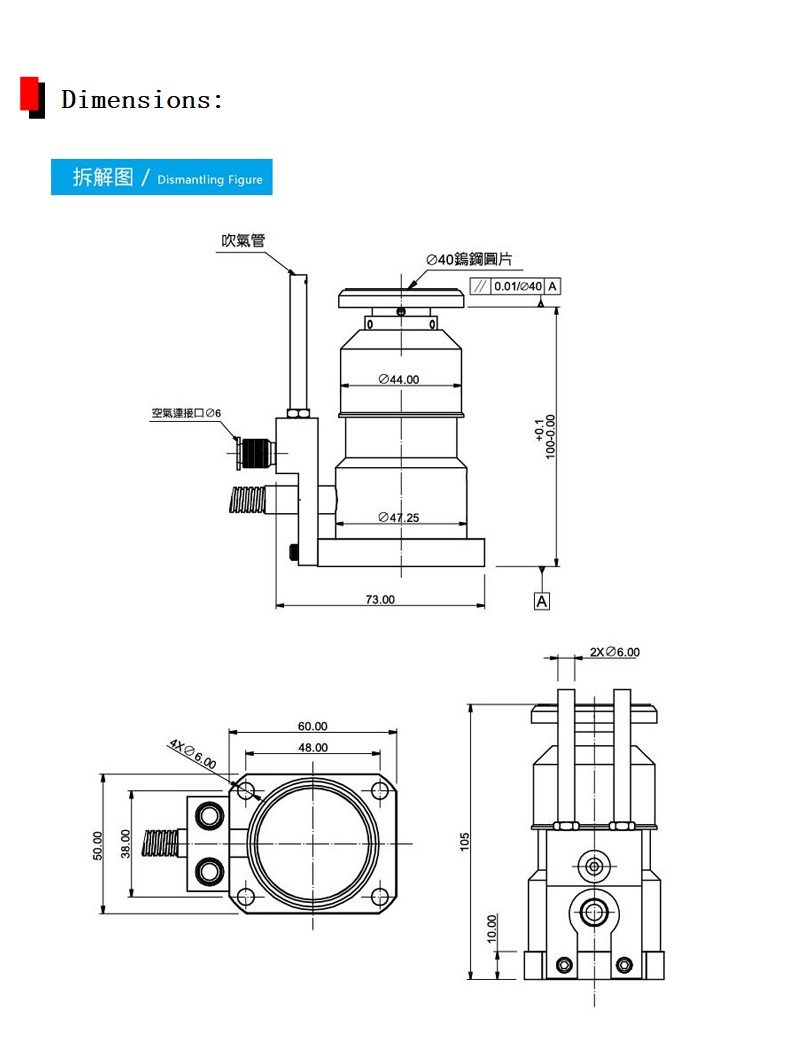

Contact plate: diameter 20 30 40 (mm)
Sealing level: waterproof and dustproof, IP68 can work normally for a long time under 1 meter water pressure
Cable length: metal protection tube 2.5M, cable 3M.
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service.
Provide 360° complete after-sales technical solution service.
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service.
Provide 360° complete after-sales technical solution service.
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service.
Provide 360° complete after-sales technical solution service.
Product features:
Reduce defective or scrapped products due to inaccurate tool setting, and avoid failure to timely detect tool breakage, damage, wear, etc.
Applicable equipment:

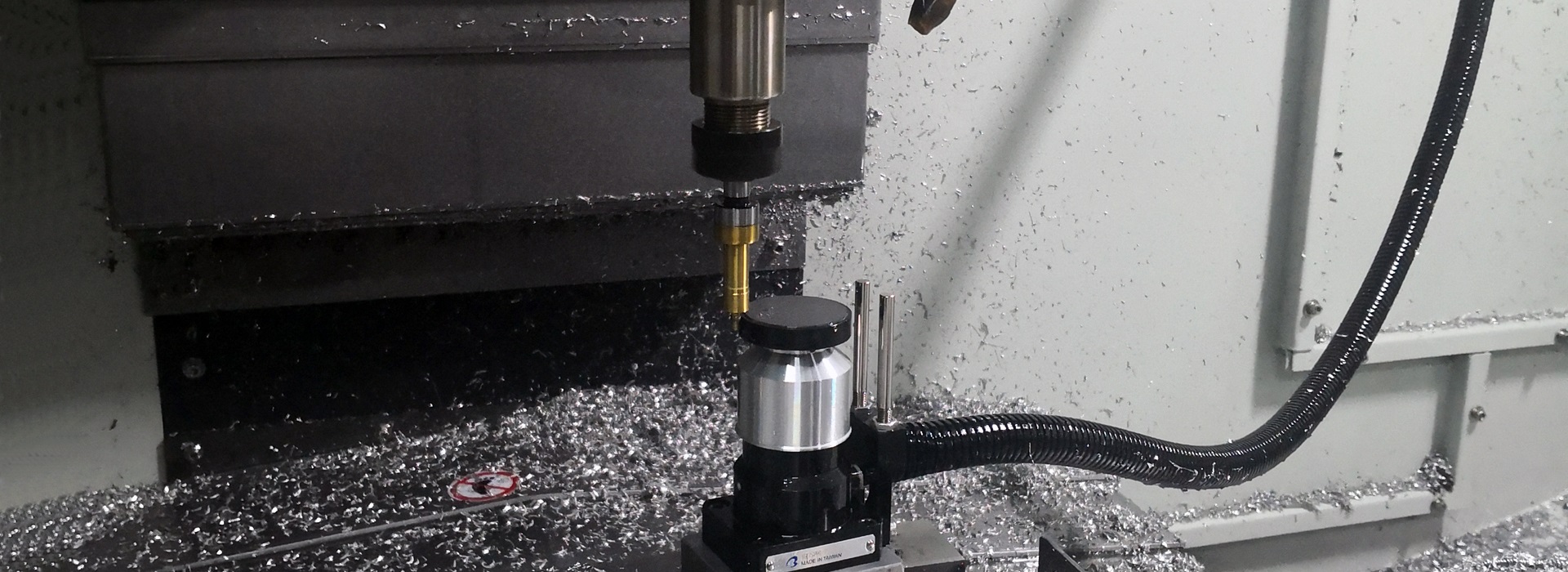

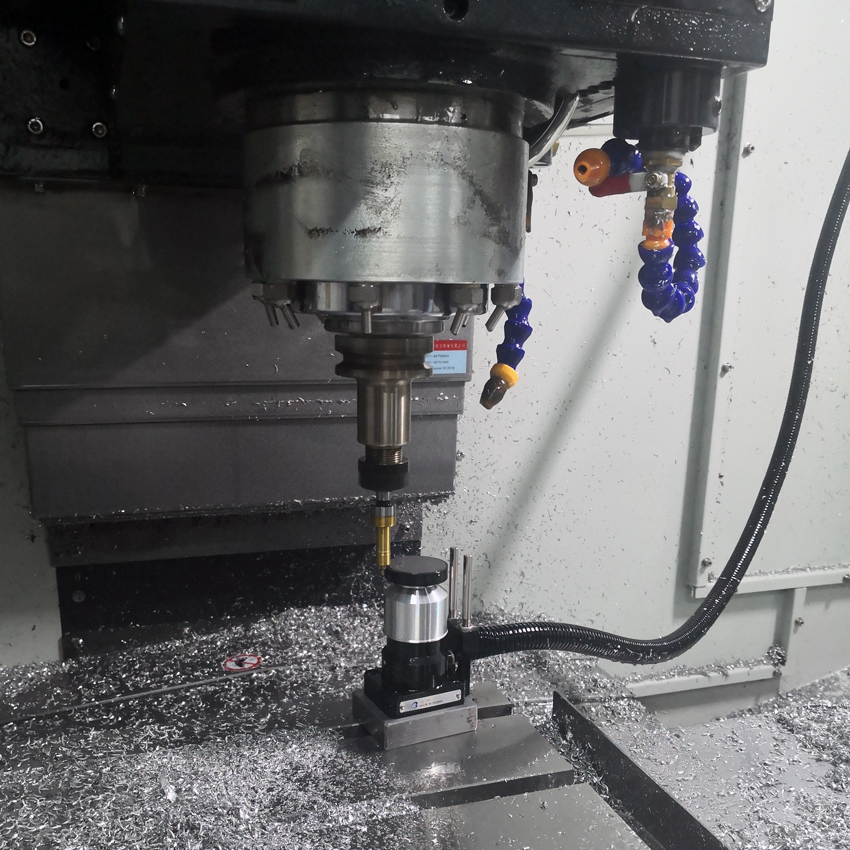

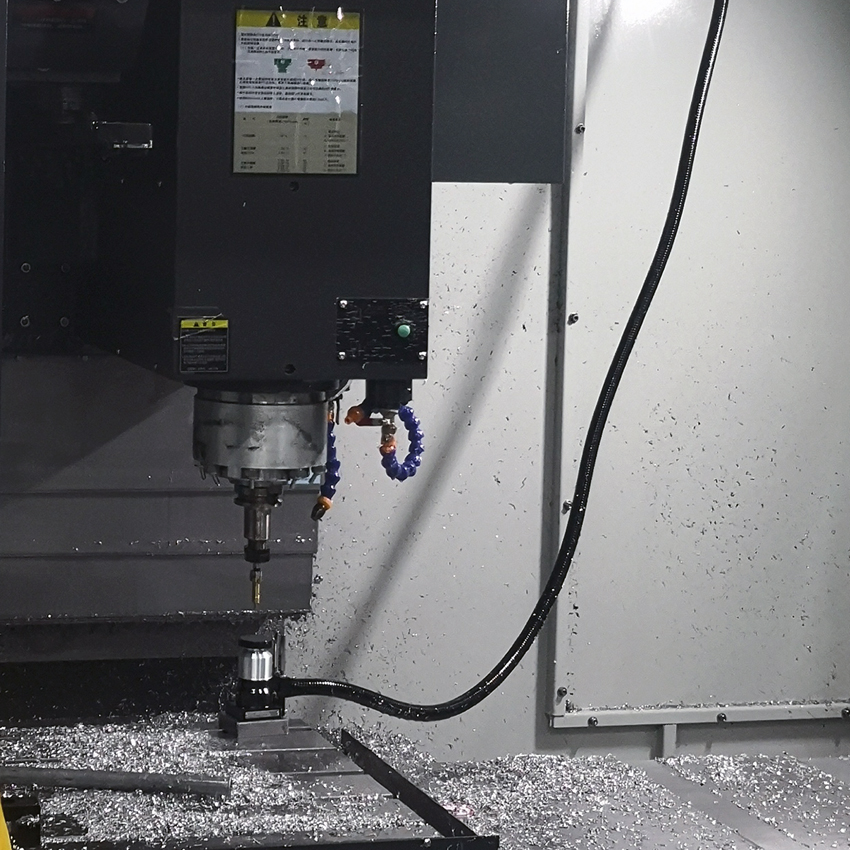

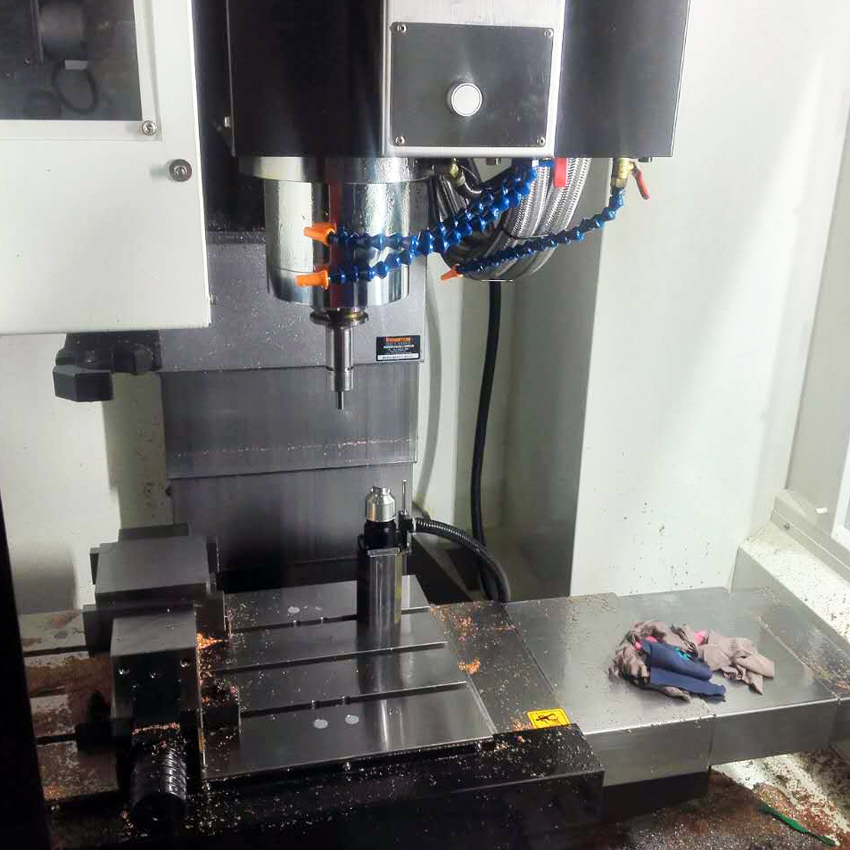

Machining center, high-speed machining center.
