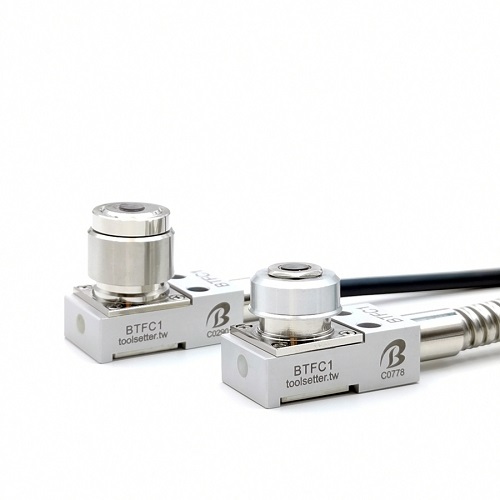

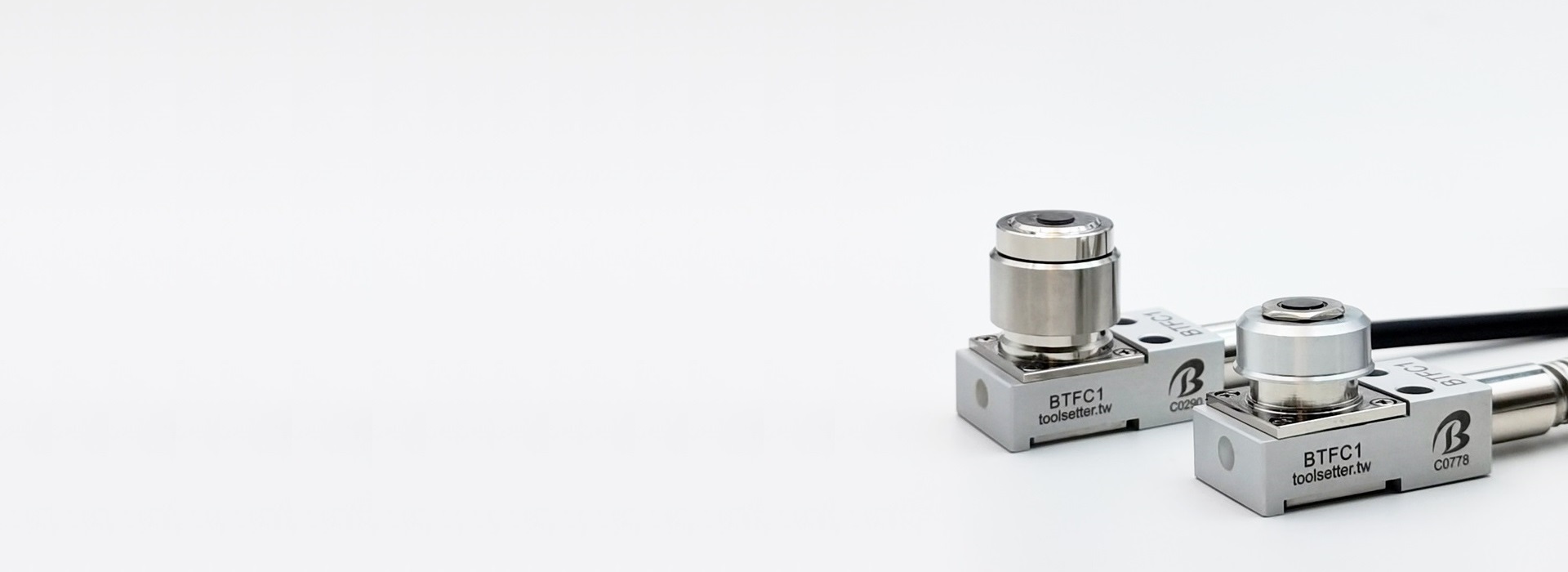

Dispensing machine tool setter
Brand: BALLSUM
Model number: BTFC1
Repeat positioning accuracy: 0.5μm 2σ (speed 50-200mm/min)
Contact life: 3 million times Contact force: preset 1.0N-1.3N (can be adjusted to 0.5N light load elastic force)
Contact disc surface: diameter 5.0mm
Sealing level: waterproof and dustproof, IP68, can work normally for a long time under the pressure of 1 meter water depth
Cable length: metal protection tube 2.5M, cable 3M.
customer service
Each customer is assigned a professional technical engineer to provide one-to-one service
Provide 360° complete after-sales technical solution services
product information
Product Series:BTFC Series
Product name: Dispensing machine tool setter
Dispensing machine tool setter functions:
Realize automatic adjustment of needle/nozzle height
Automatic correction of needle/nozzle height after replacing needle/nozzle
Application of dispensing machine tool setter:
Used with a laser displacement sensor, it can automatically calibrate the relative height of the needle/nozzle and the working surface.

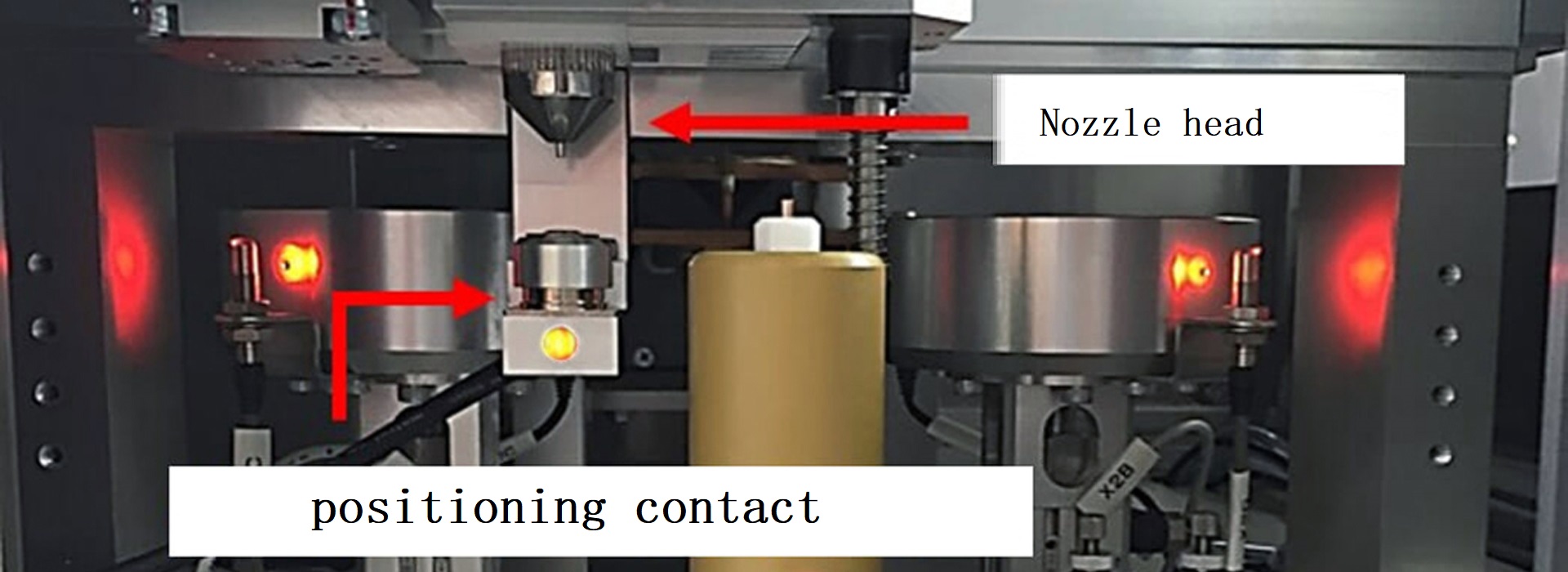

The contact calibration module is often placed on an automatic dispensing machine with automatic needle/nozzle change. After the needle/nozzle is automatically changed, it can be operated by the equipment system controller to make the needle/nozzle contact the tungsten steel plate of the calibration module for zeroing. action.
The contact height calibration block can completely replace the manual calibration process in the past, saving labor costs for the company. It can also detect wear or breakage of needles/nozzles in real time to avoid adverse situations during production.
Application machine:
Applied to automatic dispensing machines, high-precision visual dispensing/glue spraying machines, cabinet-type visual dispensing machines and other equipment
