PCB drilling machine tool setter
Brand: BALLSUM
Model number: BTFC1-R-II
Repeat positioning accuracy: 0.5μm 2σ (speed 50-200mm/min)
Contact life: 3 million times Contact force: preset 1.0N-1.3N (can be adjusted to 0.5N light load elastic force)

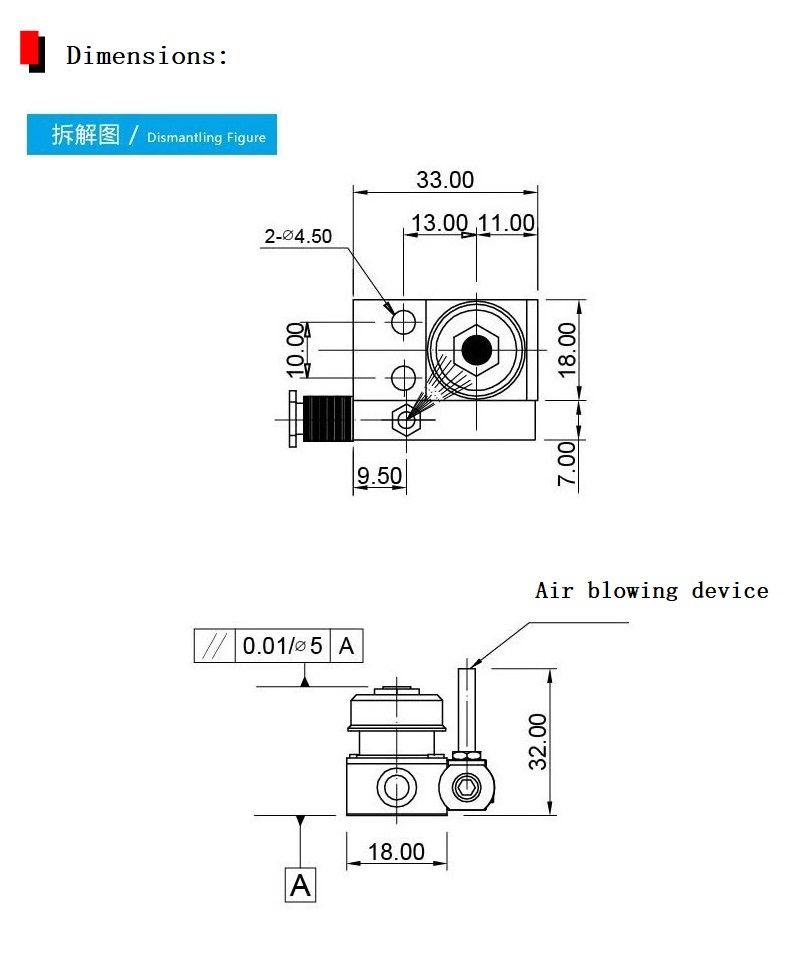

Contact disc surface: diameter 5.0mm
Sealing level: waterproof and dustproof, IP68, can work normally for a long time under the pressure of 1 meter water depth
Cable length: metal protection tube 2.5M, cable 3M.
customer service
Each customer is assigned a professional technical engineer to provide one-to-one service
Provide 360° complete after-sales technical solution services
Product information
Product series: BTFC series
Product name: PCB drilling machine tool setting instrument
Application machine:

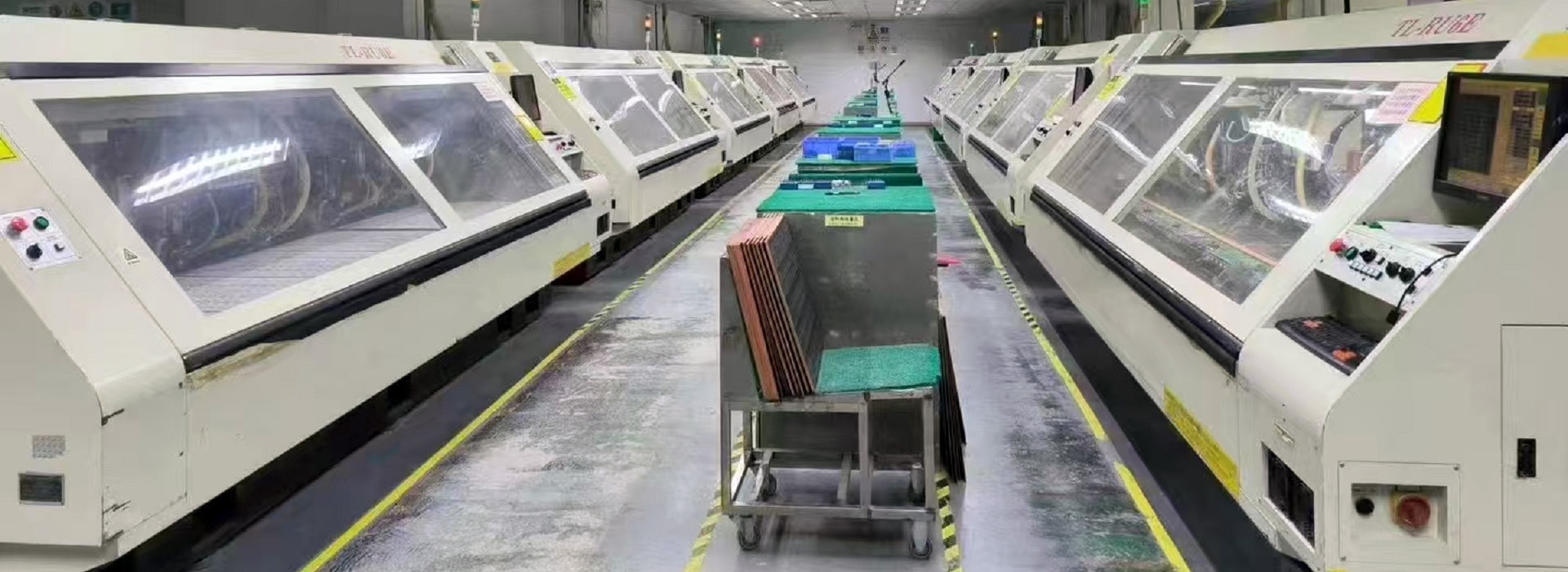

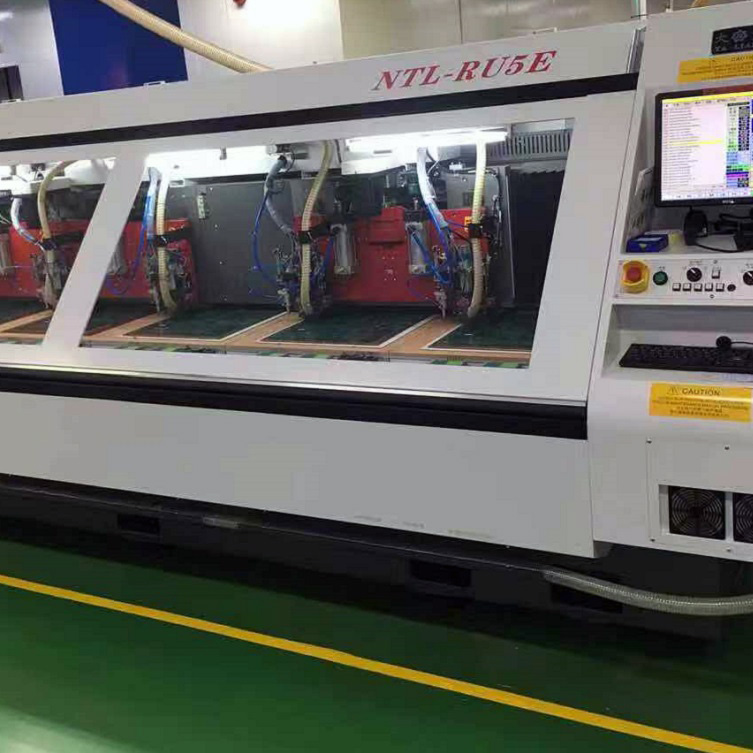

Applied to PCB forming machine, PCB drilling machine milling, drilling and reaming bottom blade accurate coordinate tool setting
Product features:
.Waterproof, oil-proof, corrosion-resistant
Can accurately measure the position of the tool, used for tool origin setting and tool wear and tool breakage detection. Small size, installation does not take up space, with air blowing device.
