Dental Equipment tool setter
Brand: BALLSUM
Model: BTF2
Repeat positioning accuracy: 0.5μm 2σ (speed 50-200mm/min)
Contact life: 3 million times Contact force: preset 1.0N-1.3N (adjustable to 0.5N light load elastic force)
Contact plate surface: diameter 5.0mm
Sealing level: waterproof and dustproof, IP68, can work normally for a long time under the pressure of 1 meter water depth
Cable length: metal protection tube 2.5M, cable 3M
customer service
Each customer is assigned a professional technical engineer to provide one-to-one service
Provide 360° complete after-sales technical solution services
Application machines:

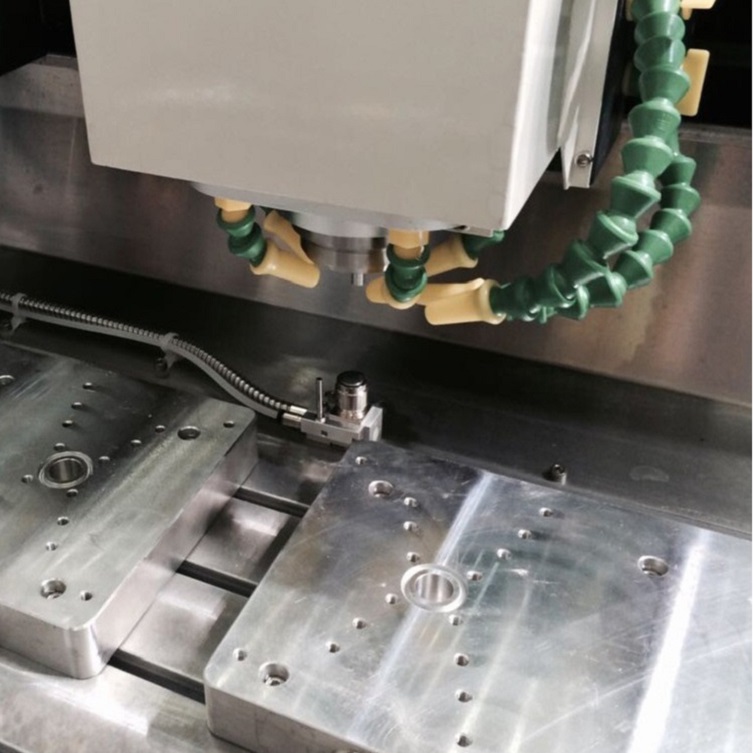

Small-sized precision engraving machines such as jewelry engraving machines, gold processing machines, glass edge grinding machines, high gloss machines, photovoltaic silicon rod processing equipment, dental equipment, etc.
Product features:
It can accurately measure the position of the tool, used for tool origin setting and tool wear and tool breakage detection, with high accuracy, especially the stainless steel version of the BTF2 tool setter, which is resistant to acid and alkali corrosion in a strong acid and alkali working environment and has a long service life
Keywords: tool setter for jewelry engraving machines, tool setter for gold processing machines, tool setter for glass edge grinding machines, tool setter for high gloss machines, tool setter for photovoltaic silicon rod processing equipment, tool setter for dual-axis machines and multi-axis edge grinding machines, tool setter for precision engraving machines, tool setter for denture machines, tool setter for dental equipment
