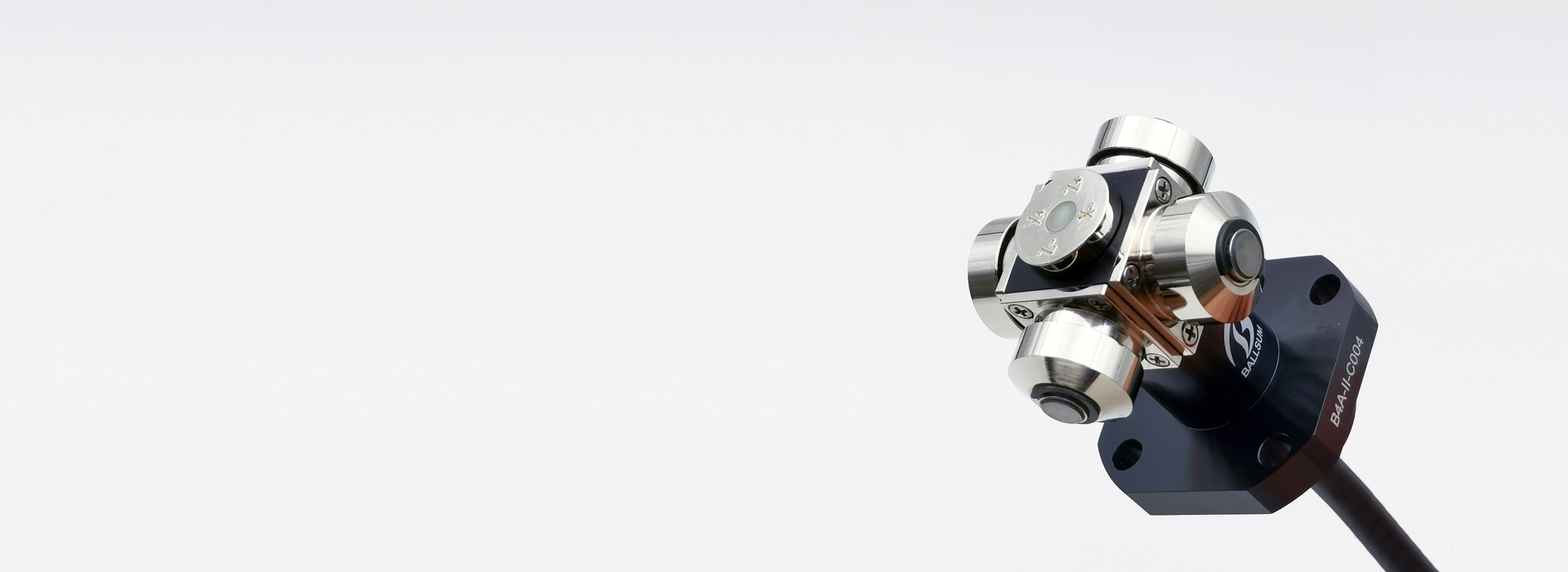

CNC lathe tool setting instrument
Model: B4A
Origin: Taiwan
Repeat positioning accuracy: 1 μm 2σ (speed 50-200mm/min)
Contact life: 3 million times
Contact force: preset 2.0N-2.5N
Contact plate: diameter 5mm
Sealing level: waterproof and dustproof, IP68 can work normally for a long time under the pressure of 1 meter of water
Cable length: cable 3M.
Customer Service
Each customer is equipped with a professional technical engineer for one-to-one service
Provide 360° complete after-sales technical solution service
Product features:
Using CNC tool setting device (tool setting instrument) can greatly reduce the defective or waste products caused by inaccurate tool setting by manual operation. It is waterproof, oil-proof and corrosion-resistant.
Application equipment:

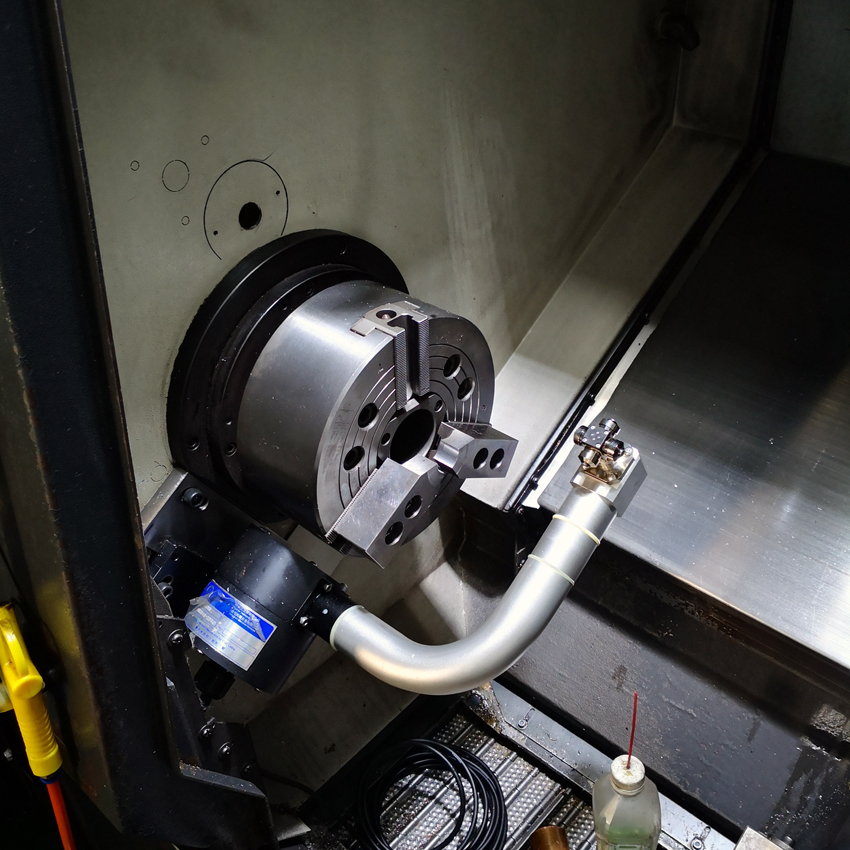

For CNC lathe, it can accurately measure the position of the tool; tool origin setting and tool loss and tool breakage detection.
